This is a standalone machine from ‘Corrugated Fins Wall Former System’.
Corrugated Fins are part of a core component from the Radiator system in Power and Distribution Transformer. These fins are made from Mild Steel coil. It can withstand expansion and contraction of the oil and is designed to provide a large surface area to dissipate the heat generated by Transformer.

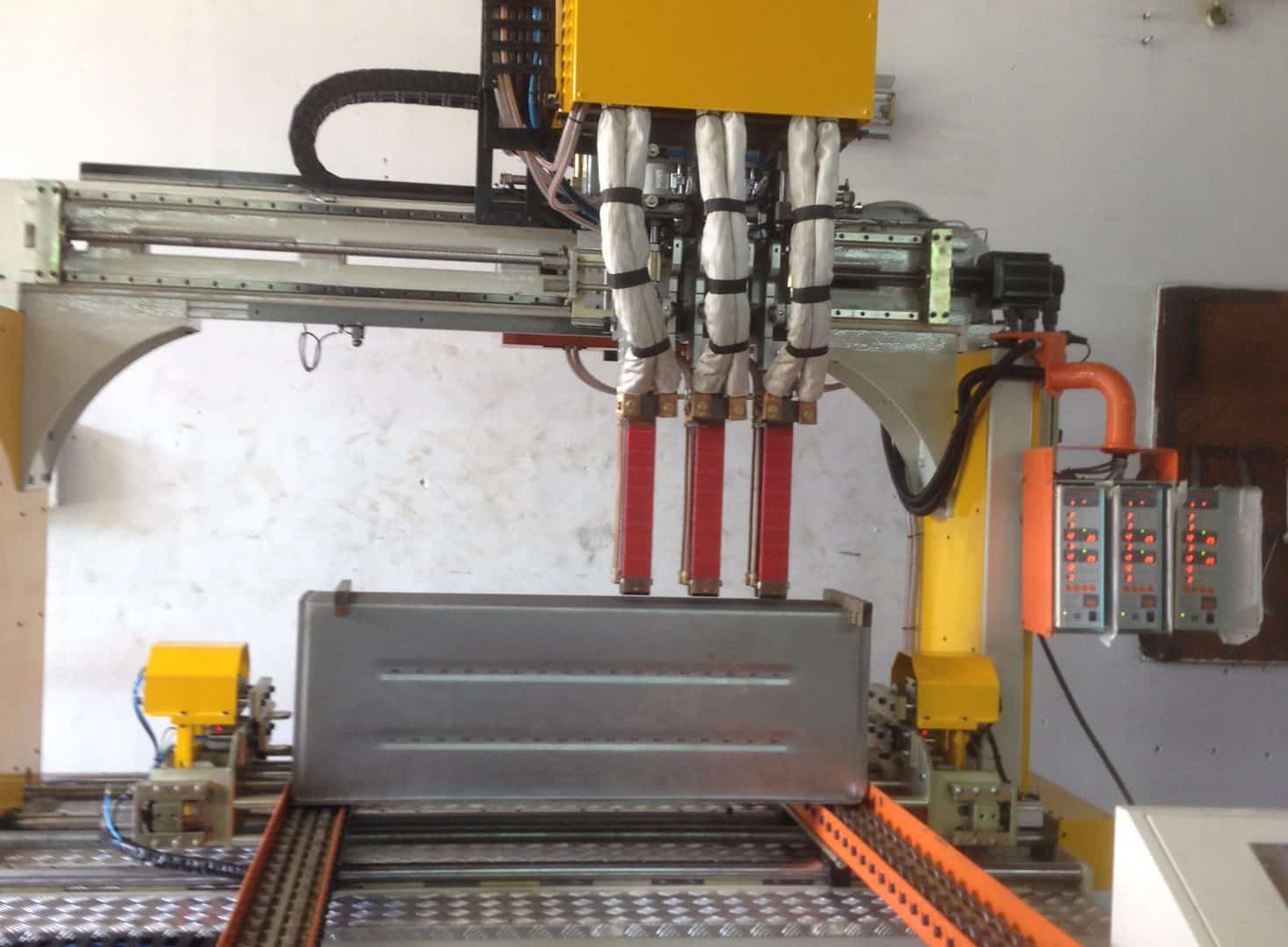

The main working principle of this machine is to produce spot welds on the embossing on the formed fins wall. The machine is designed to cater different dimensions of fins wall with adjustable spot positions. This machine is automated upon receiving parts from its inlet, with a sensor ready to detect the presence of the feeding part, and then it works itself until completion and ejects the completed part at its outlet.
Technical Specification
| Name & Model | Fin Wall Former – FW_05/ Auto De-coiler – DC-02 |
| Power Requirement | 3-Phase 100A |
| Power Rating | 3-Phase 380V/415V (can change to fit your country’s rating) |
| Spot weld speed | 48 seconds for 1600mm width model, 50mm pitch per spot weld, 26 points |
| Fin Wall width (mm) | (min) 400mm, (max) 1600mm |
| Fin Wall heights (mm) | (min) 80mm, (max) 400mm |
| Fin Wall pitches (mm) | (min) 40mm, (max) 80mm |
| Steel sheet thickness | (min) 1.2mm, (max) 1.5mm |
| Embossing | 1 or 2 (more on special request) |
| Pneumatic system | Yes |
| Hydraulic system | No |
| Transformer rating | 50kVA |
| Circuitry controls | Omron PLC (Japan) |
| Pneumatic System | SMC (Japan) |
| Servo Motors | Fuji (Japan) |
